MB-P4BWA

SKU: P4BWA

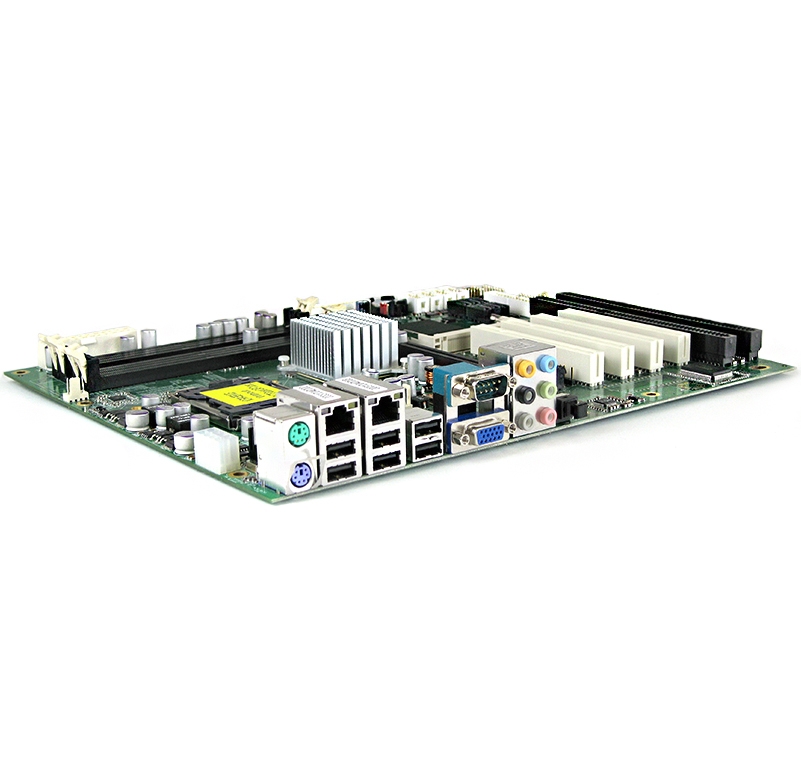

P4BWA Industrial ATX Motherboard

P4BWA Industrial Motherboard

The P4BWA industrial motherboard is a long-life ATX motherboard with FOUR 32-bit PCI slots, 2 ISA slots, and 1 each PCIe x16 and PCIe x4 slots.  This motherboard is Socket 775 for Intel Quad Core, Core 2 Duo, Pentium D, and Pentium 4 processors.  The Intel Q965 chipset has integrated GMA 3000 graphics supporting up to 2 independent displays, and takes advantage of features such as Intel Fast Memory Access.

On-Board VGA, HD Audio, Serial ATA, Dual LANs, Serial

The P4BWA industrial motherboard has dual gigabit LANs, supports 5 serial ports and a parallel port, and makes available 6 SATA II devices.  There are 6 USB 2.0 ports on the rear panel, and 4 additional via internal headers.

  • Supports Intel Core 2 Quad, Core 2 Duo & Pentium D LGA775 processors 533/800/1066 FSB
  • 4 x 240-pin DDR2 533/667/800 MHz RAM up to 8 GB
  • Intel Q965 & ICH8DO chipset
  • Built-in Intel Extreme GMA 3000 video (up to 256 MB shared RAM)
  • 6 X SATA II interface with 300 MB/s transfer rate
  • Supports RAID 0, 1, 5, 10
  • 2 x Intel 82573L Gigabit Ethernet & Realtek ALC888 high defination audio
  • 1 x PCI-Express X16, 1 x PCI-Express X4, 1 x mini-PCI, 4 x PCI & 2-ISA (No DMA support for ISA)

Features

DESCARGAR FICHA
CPU Socket Type LGA 775
Chipset Intel Q965
Channel Supported Dual Channel
CPU Type Core 2 Quad / Core 2 Duo / Pentium 4 / Pentium D / Celeron D
Number of Memory Slots 4x240pin
Memory Standard 800 / 667 / 533 DDR2 (non-ECC)
Maximum Memory Supported 8GB
PCIe 2.0 x16 1
PCIe 2.0 x4 1
PCI 4
Mini-PCI 1
ISA 2 (no DMA)
SATA 2.0 6
SATA RAID 0 / 1 / 5 / 10
FDD 1
Graphic Controller Intel GMA 3000
VGA 1
Display Mode 2x independent
Audio Controller Realtek ALC888 HD Audio Codec
Ethernet Controller 2x Intel 82573L GbE LAN
PS/2 1x Keyboard, 1x Mouse
USB 2.0 6x rear, 4x internal
Serial 5x COM (COM1 rear, COM2-5 internal)
Serial Types COM1 (RS-232/422/485 0V/5V/12V), COM2-5 (RS-232 0V/5V/12V)
Parallel 1
Watchdog Timer 255-level
Super I/O Controller Fintek F81216D
GPIO 8-bits (4x GPI, 4x GPO)
IrDA 1
Power Supply ATX 24-pin, 12V 8-pin
Operating Temperature 0-60 C
Storage Temperature -20-85 C
Regulatory Compliance FCC, CE
