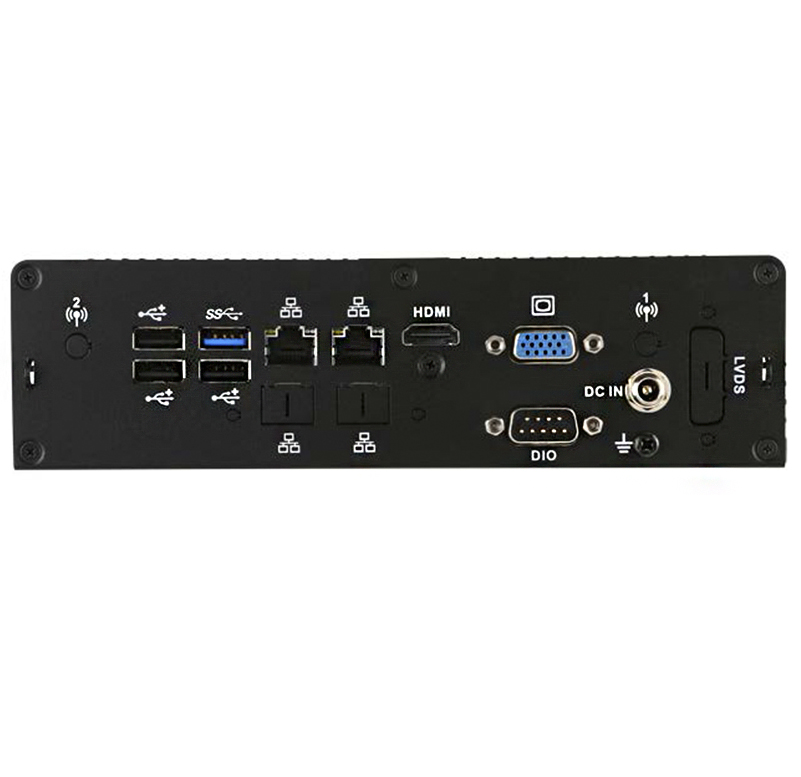

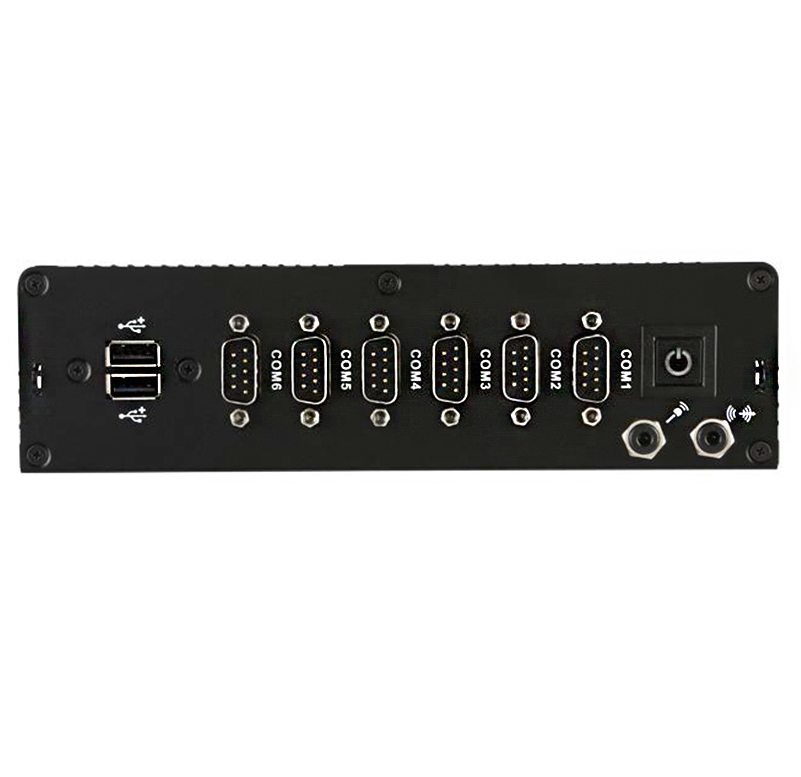

MS-9A69-Top (2) MS-9A69-BayTrail-Front MS-9A69-BayTrail-Rear
MS-9A69-Top (2)

SKU: MS-9A69-BT

MS-9A69-BT Embedded Systems

The MS-9A69-BT is an ultra low power fanless solution with an Intel® Celeron® J1900 processor. Multiple COM and LAN ports make this a great option for those requiring a low power embedded system with plenty of I/O in a small fanless package.

Features

  • Ultra low power with fanless design
  • Support DDR3L 1333 MHz SO-DIMM memory up to 8GB
  • Support 2 independent displays with HDMI, VGA
  • Dual GbE LAN, rich USB and COM ports
  • Dual Mini-PCIe for expansion
  • Support DC-in 12V/19V/24V
  • Dimensions: 200mm x 150mm x 55mm

Features

DESCARGAR FICHA
CPU Intel Celeron Processor J1900
Channel Supported Single Channel
Number of Memory Slots 1x204pin
Memory Standard 1333 DDR3L (non-ECC)
Maximum Memory Supported 8GB
Mini-PCIe 2x full-size (1x w/ mSATA)
mSATA 1
SATA 3.0 1
Graphic Controller Intel HD Graphics
VGA 1
HDMI 1
LVDS 1 (option)
Display Mode 2x independent
Audio Controller Realtek ALC887-VD2-CG HD Audio Codec
Ethernet Controller 2 x Intel I210-AT GbE LAN
USB 3.0 1
USB 2.0 5
Serial 6x COM
Serial Types COM1 (RS-232/422/485 0V/5V/12V)
Watchdog Timer 256-level
Power Supply DC-in 12V/19V/24V
Operating Temperature -10-45 C (HDD)
Operating Humidity 10-90% non-condensing
Storage Temperature -20-80 C
Storage Humidity 10-90% non-condensing
Regulatory Compliance FCC, CE, RCM, VCCI, BSMI
