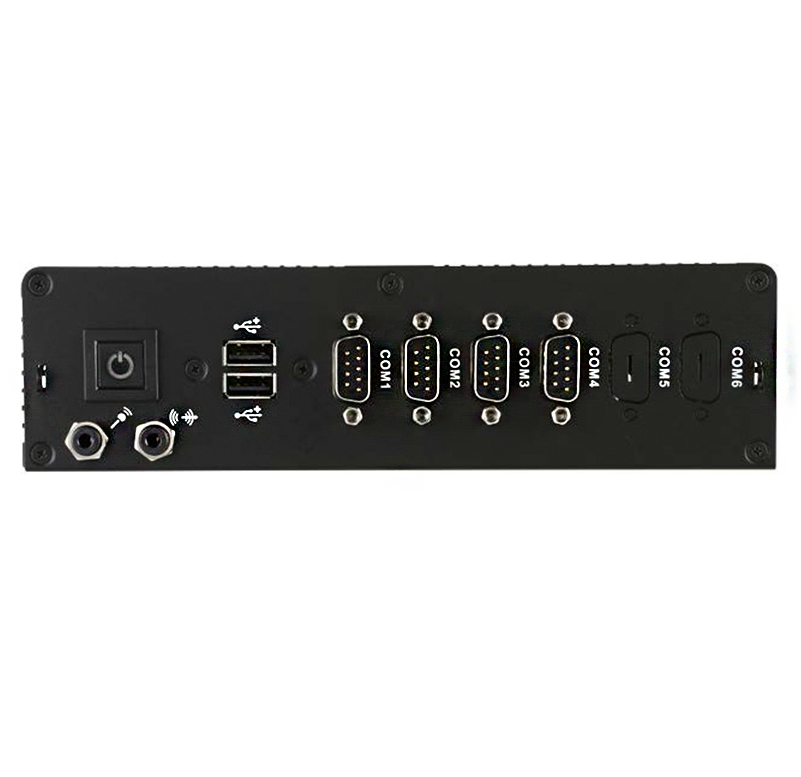

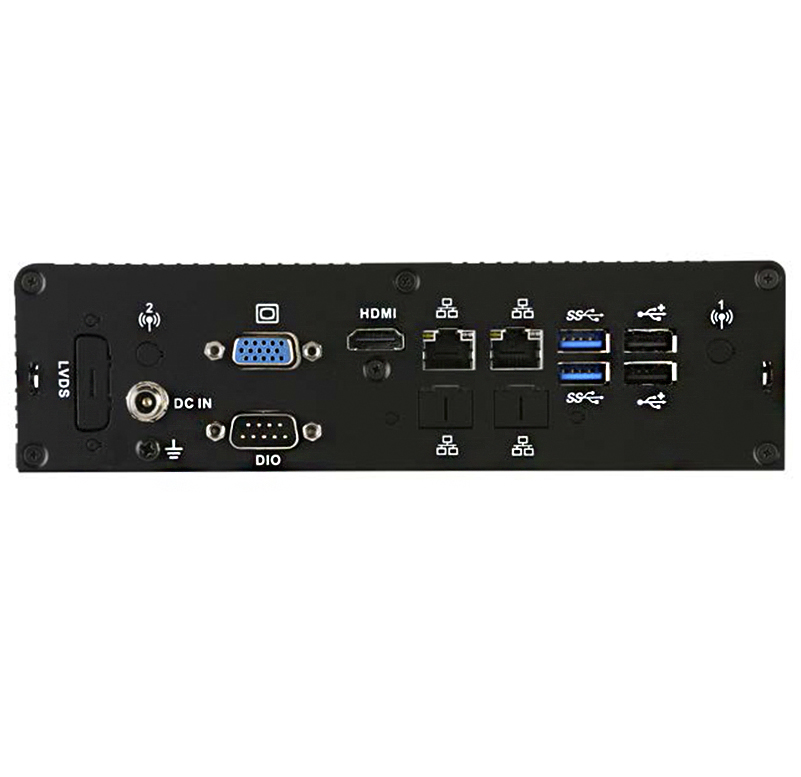

MS-9A69-Top (1) MS-9A69-Broadwell-Front MS-9A69-Broadwell-Rear
MS-9A69-Top (1)

SKU: MS-9A69-BDW

MS-9A69-BDW Embedded Systems

The MS-9A69-BDW is an ultra low power fanless solution with an Intel® Core® i3-5010U processor. Multiple COM and LAN ports make this a great option for those requiring a low power embedded system with plenty of I/O in a small fanless package.

Features

  • Ultra low power with fanless design
  • Support DDR3L 1600 MHz SO-DIMM memory up to 8GB
  • Support 3 independent displays with HDMI, VGA, and optional LVDS
  • Dual GbE LAN, rich USB and COM ports
  • Dual Mini-PCIe for expansion
  • Support DC-in 12V/19V/24V
  • Dimensions: 200mm x 150mm x 55mm

Features

DESCARGAR FICHA
CPU Intel Core Processor i3-5010U
Channel Supported Single Channel
Number of Memory Slots 1x204pin
Memory Standard 1600 DDR3L (non-ECC)
Maximum Memory Supported 8GB
Mini-PCIe 1x full-size (w/ mSATA)
mSATA 1
SATA 3.0 1
Graphic Controller Intel HD Graphics
VGA 1
HDMI 1
LVDS 1 (option)
Display Mode 3x independent
Audio Controller Realtek ALC887-VD2-CG HD Audio Codec
Ethernet Controller 1x Intel I210-AT GbE LAN
USB 3.0 2
USB 2.0 4
Serial 4x COM
Serial Types COM1 (RS-232/422/485 0V/5V/12V)
Watchdog Timer 256-level
Power Supply DC-in 12V/19V/24V
Operating Temperature -10-45 C (HDD)
Operating Humidity 10-90% non-condensing
Storage Temperature -20-80 C
Storage Humidity 10-90% non-condensing
Regulatory Compliance FCC, CE, RCM, VCCI, BSMI
