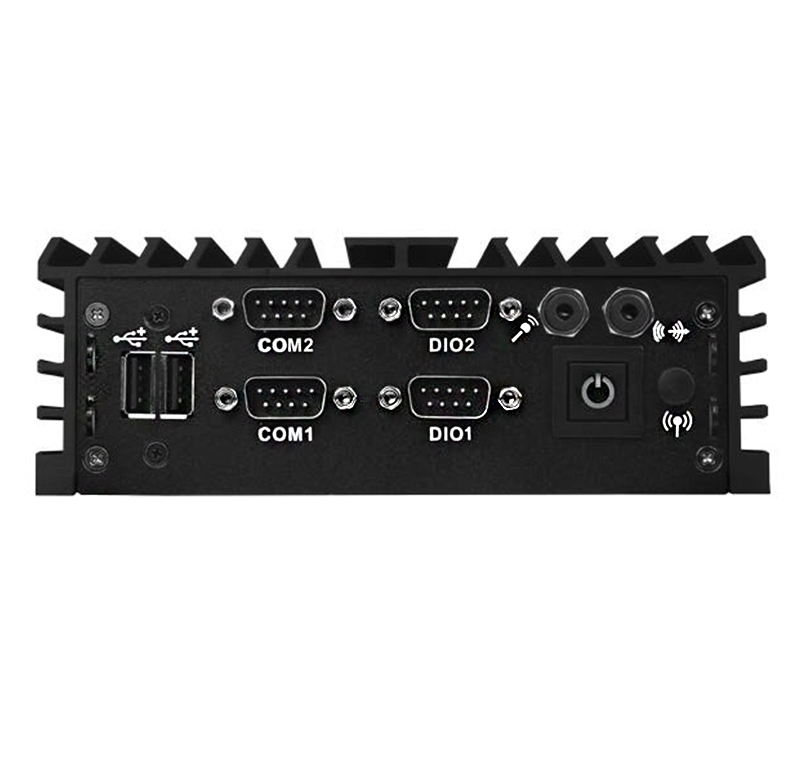

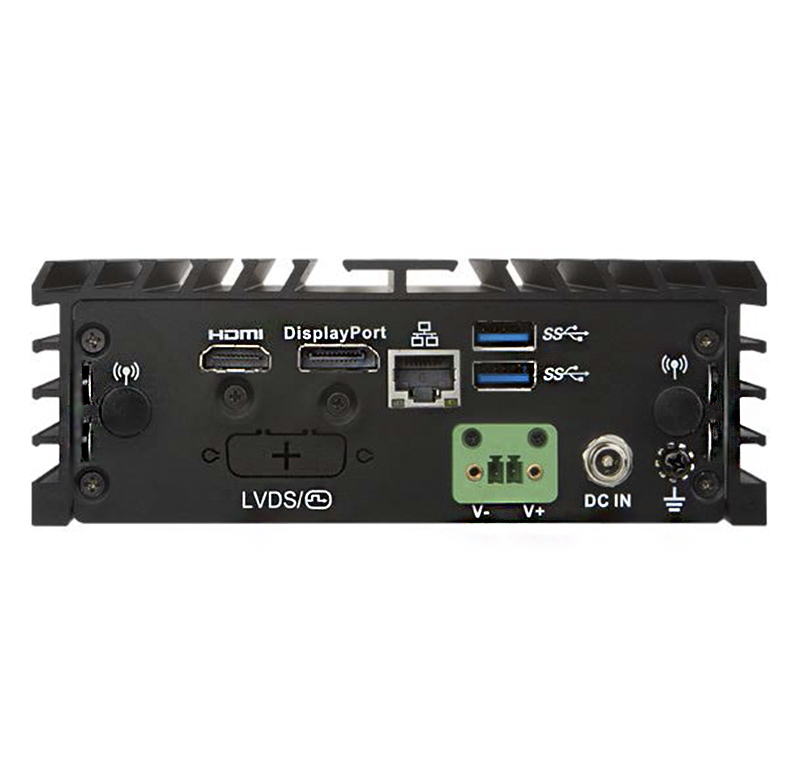

MS-9A59-Top MS-9A59-Rear MS-9A59-Front
MS-9A59-Top

SKU: MS-9A59

MS-9A59 Embedded Systems

The MS-9A59 is a palm-sized fanless box PC with the Intel Celeron N3160 processor. This ultra low power design offers wall mount, VESA mount, and DIN rail mounting options.

Features

  • Intel® Celeron® Processor N3160, QC, 6W
  • Ultra low power with fanless design
  • Support Onboard 2GB DDR3L memory
  • Support 2 or 3 independent displays with HDMI, VGA, and optional DVI-I/LVDS
  • Support 16-bit GPIO (8*GPI; 8*GPO)
  • Support 1 Intel® GbE LAN, 2 USB 3.0, 2 USB 2.0 and 2 COM ports
  • Support Flexible DC-in 12V input
  • Anti-Vibration & Shockproof Design
  • Dimensions: 155mm x 105mm x 55mm

Features

DESCARGAR FICHA
CPU Intel® Celeron® Processor N3160
Chipset Integrated SoC
Memory 2GB Single-Channel DDR3L 1600MHz
Mini-PCIe 1 (half-size)
SATA 3.0 1
mSATA 1
Graphic Controller Intel HD Graphics
DVI-I 1 (option)
LVDS 1 (option)
HDMI 1
DisplayPort 1
Display Mode 3x independent
Audio Controller Realtek ALC887-VD2-CG HD Audio Codec
Ethernet Controller 1x Intel I211-AT GbE LAN
USB 3.0 2
USB 2.0 2
Serial 2x COM
Serial Types COM1-2 (RS-232/422/485 0V/5V/12V)
Watchdog Timer 256-level
TPM 1x pin header
Power Supply DC-in 12V Jack / Phoenix Pluggable with Latch (OCP&OVP Protection)
Operating Temperature -10-45 C (HDD)
Operating Humidity 10-90% non-condensing
Storage Temperature -20-80 C
Storage Humidity 10-90% non-condensing
Regulatory Compliance FCC, CE, RCM, VCCI, BSMI
