MS-98H9 Industrial ATX Motherboard

MS-98H9 Industrial Motherboard

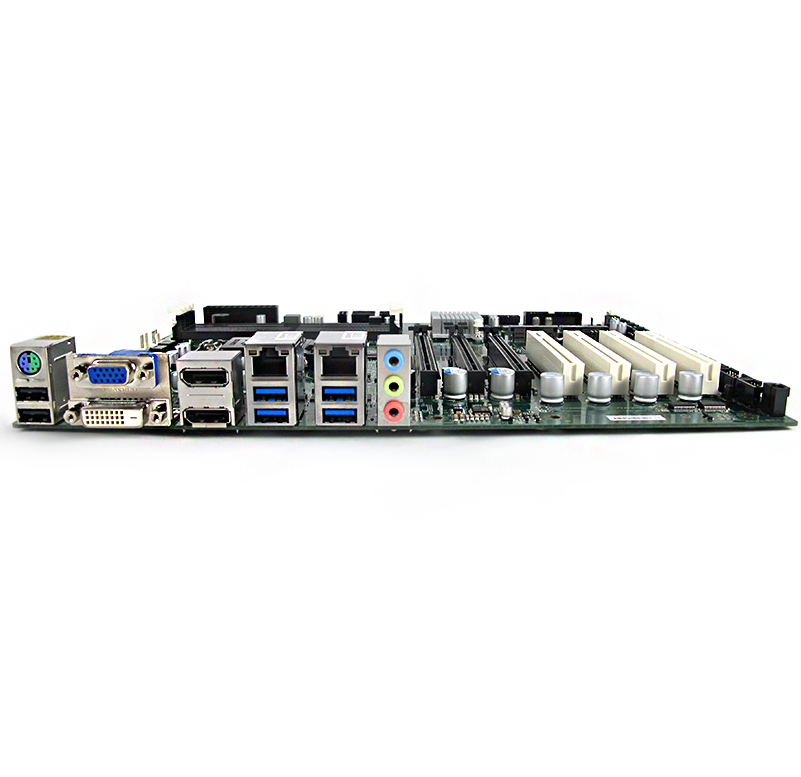

The MS-98H9 industrial motherboard is a long-life ATX motherboard with 4x 32-bit PCI slots, 2x PCIe x4 and 1x PCIe x16 slots. This motherboard is based on the Skylake architecture, accepting Generation 6 & 7 LGA 1151 Intel processors. The well-established Intel Q170 chipset allows for features such as Intel Rapid Storage Technology and Intel AMT.

On-Board Dual DisplayPort, DVI-I, HD Audio, USB 3.0, Dual LANs

The MS-98H9 industrial motherboard has multiple on-board features commonly sought after on an industrial board. Dual DisplayPorts and DVI to take advantage of Intel HD graphics, HD audio, and dual gigabit LANs are all incorporated right on the rear panel.

  • Supports Generation 6 & 7 Core i3, i5 & i7 Processors
  • Intel Q170 Chipset
  • 4 x DDR4 2133 MHz Memory Sockets up to 64 GB RAM
  • Dual DisplayPort, VGA AND DVI-I ports
  • 5 x SATA 3
  • On-board RAID 0, 1, 5, 10
  • Dual Gigibit LANs
  • 6 x USB 3.0 (4 rear, 2 internal)
  • 6 x USB 2.0 (2 rear, 4 internal)
  • 1 x PCIe x16, 2 x PCIe x4, 4 x PCI slots
  • 6 x COM (4 x RS-232, 2 x RS232/422/485), 1 x LPT, PS/2

Features

DESCARGAR FICHA
CPU Socket Type LGA 1151
Chipset Intel Q170
Channel Supported Dual Channel
CPU Type Core i7 / i5 / i3 / Pentium / Celeron
Number of Memory Slots 4x288pin
Memory Standard 2133 DDR4 (non-ECC)
Maximum Memory Supported 64GB
PCIe 3.0 x16 1
PCIe 3.0 x4 2
PCI 4
Mini-PCIe 2
SATA 3.0 5
mSATA 1
SATA RAID 0 / 1 / 5 / 10
Graphic Controller Intel HD Graphics
VGA 1
DVI-D 1
DisplayPort 2
Display Mode 3x independent
Audio Controller Realtek ALC887 HD Audio Codec
Ethernet Controller 1x Intel I219-LM GbE LAN PHY, 1x Intel I210-AT GbE LAN
PS/2 1x Keyboard/Mouse
USB 3.0 4x rear, 2x internal
USB 2.0 2x rear, 4x internal
Serial 6x COM (COM1-6 internal)
Serial Types COM1-2 (RS-232/422/485 0V/5V/12V), COM3-6 (RS-232 0V/5V/12V)
Parallel 1
Watchdog Timer 256-level
TPM 1x box header
Super I/O Controller Fintek F81866AD-I
GPIO 8-bits (4x GPI, 4x GPO)
Smart Fan Yes
Power Supply ATX 24-pin, 12V 8-pin
Operating Temperature -10-60 C
Operating Humidity 10-90% non-condensing
Storage Temperature -20-80 C
Storage Humidity 10-90% non-condensing
Regulatory Compliance FCC, CE, RCM, VCCI, BSMI (Class B)
