SKU: MS-98A9

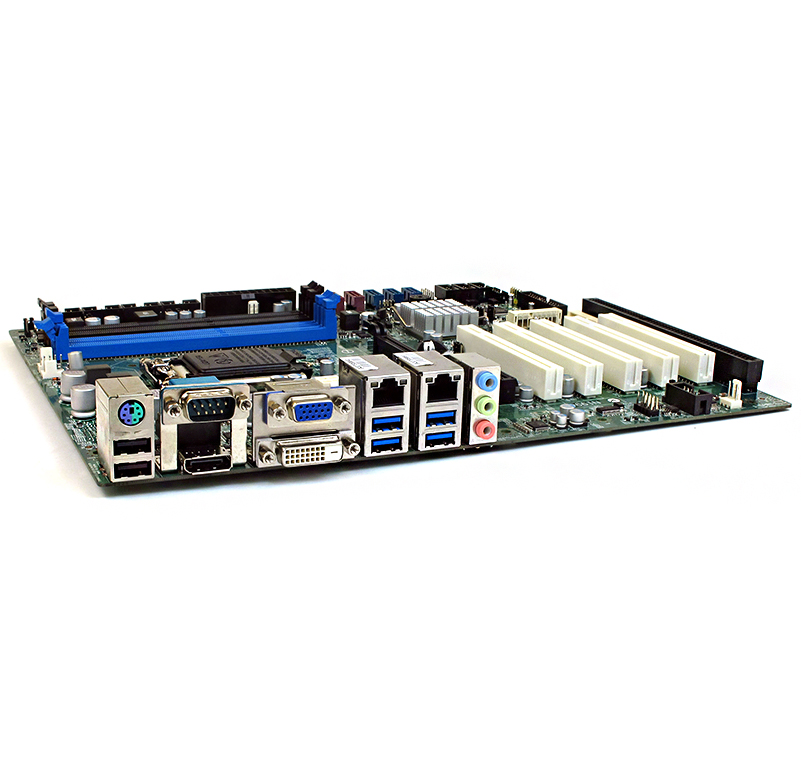

MS-98A9 Industrial ATX Motherboard
MS-98A9 Industrial Motherboard
The MS-98A9 industrial motherboard is a long-life ATX motherboard with FIVE 32-bit PCI slots, 1 ISA slot, and 1 each PCIe x16 and PCIe x4 slots. This motherboard is based on the Ivy Bridge architecture, accepting Generation 3 LGA 1155 Intel processors. The well-established Intel Q77 Express chipset allows for features such as Intel Rapid Storage Technology and Intel vPro.
On-Board VGA, DVI-D, HD Audio, Serial ATA, Dual LANs
The MS-98A9 industrial motherboard has multiple on-board features commonly sought after on an industrial board. VGA and DVI-D to take advantage of Intel HD graphics, HD audio, and dual gigabit LANs are all incorporated right on the rear panel.
- Supports Generation 3 Core i3, i5 & i7 Processors
- Intel Q77 Chipset
- 4 x DDR3 1600 MHz Memory Sockets up to 32 GB RAM
- Dual Video, VGA AND DVI-D ports
- 5 SATA Controllers (2 x SATA 3, 3 x SATA 2)
- On-board RAID 0, 1, 5, 10
- Dual Gigibit LANs
- 4 x USB 3.0 (rear), 8 x USB 2.0 (2 rear, 6 via pin headers)
- 1 x PCIe x16, 1 x PCIe x4, 5 x PCI slots, 1 x ISA slot (No DMA support for ISA)
- 6 x COM Ports (5 x RS-232, 1 x RS232/422/485), 1 x LPT, PS/2
Features
DESCARGAR FICHA
| CPU Socket Type | LGA 1155 |
| Chipset | Intel Q77 Express |
| Channel Supported | Dual Channel |
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron |
| Number of Memory Slots | 4x240pin |
| Memory Standard | 1600 / 1333 / 1066 DDR3 (non-ECC) |
| Maximum Memory Supported | 32GB |
| PCIe 2.0 x16 | 1 |
| PCIe 2.0 x4 | 1 |
| PCI | 5 |
| Mini-PCIe | 1 |
| ISA | 1 (no DMA) |
| SATA 3.0 | 2 |
| SATA 2.0 | 3 |
| mSATA | 1 |
| SATA RAID | 0 / 1 / 5 / 10 |
| Graphic Controller | Intel HD Graphics |
| VGA | 1 |
| DVI-D | 1 |
| DisplayPort | 1 |
| Display Mode | 2x independent (SNB processor), 3x independent (IVB processor) |
| Audio Controller | Realtek ALC887 HD Audio Codec |
| Ethernet Controller | 1x Intel 82579LM GbE LAN PHY, 1x Intel 82583V GbE LAN |
| PS/2 | 1x Keyboard/Mouse |
| USB 3.0 | 4x rear |
| USB 2.0 | 2x rear, 6x internal |
| Serial | 6x COM (COM1 rear, COM2-6 internal) |
| Serial Types | COM1-2 (RS-232/422/485 0V/5V/12V), COM3-6 (RS-232 0V/5V/12V) |
| Parallel | 1 |
| Watchdog Timer | 255-level |
| TPM | 1x 2*7-pin header |
| Super I/O Controller | Fintek F81866 |
| GPIO | 8-bits (4x GPI, 4x GPO) |
| Smart Fan | Yes |
| Power Supply | ATX 24-pin, 12V 4-pin |
| Operating Temperature | 0-60 C |
| Operating Humidity | 10-90% non-condensing |
| Storage Temperature | -20-80 C |
| Storage Humidity | 10-90% non-condensing |
| Regulatory Compliance | FCC, CE, C-Tick, VCCI, BSMI |
