MB-800V

SKU: MB-800V

MB-800V Industrial ATX Motherboard

MB-800V Industrial Motherboard

Ideal for your legacy ISA hardware needs, the MB-800V offers 3 PCI slots and 3 ISA slots with full DMA support.  It handles Socket 478 Pentium 4 and Celeron processors and up to 2GB of RAM.  The Intel 845GV chipset offers integrated video.  The MB-800V industrial motherboard is a long-life ATX board perfectly fit for supporting legacy hardware.

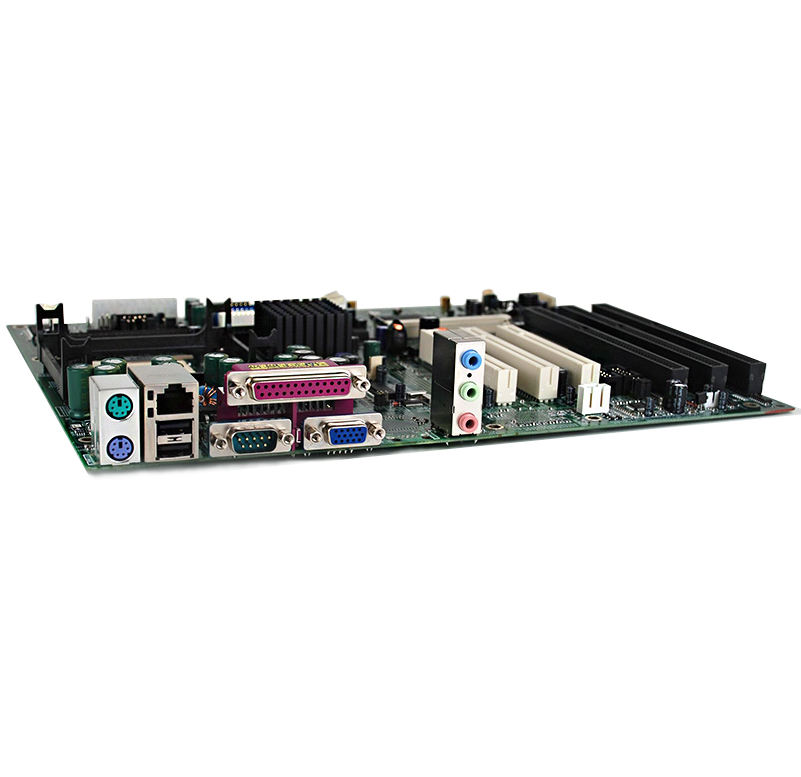

This motherboard offers many I/O and expansion ports.  On the rear panel there is a parallel port, a serial port, fast ethernet LAN, and 2 USB 2.0 ports.  A VGA port along with the Intel integrated video offers plenty of video output power for your legacy applications.

  • Socket 478 for Pentium IV & Celeron
  • 533 MHz front side bus
  • Two DDR memory slots
  • Incorporates on-board video VGA, Parallel, Serial, LAN, audio
  • 4-USB ports (2.0)
  • 3-PCI & 3-ISA Slots

Features

DESCARGAR FICHA
CPU Socket Type Socket 478
Chipset Intel 845GV
Channel Supported Single Channel
CPU Type Pentium 4 / Celeron
Number of Memory Slots 2x184pin
Memory Standard 266 / 200 DDR (non-ECC)
Maximum Memory Supported 2GB
PCI 3
Mini-PCI 1
ISA 3
IDE 2
FDD 1
Graphic Controller Intel Extreme Graphics
VGA 1
Audio Controller ICH4 Integrated AC97 Codec
Ethernet Controller ICH4 Integrated FE LAN
PS/2 1x Keyboard, 1x Mouse
USB 2.0 2x rear, 2x internal
Serial 4x COM (COM1 rear, COM2-4 internal)
Serial Types COM1 (RS-232/422/485 0V/5V/12V), COM2-4 (RS-232 0V/5V/12V)
Parallel 1
Watchdog Timer 256-level
Super I/O Controller Winbond 83627HF
GPIO 8-bits (4x GPI, 4x GPO)
IrDA 1
Power Supply ATX 20-pin
Operating Temperature 0-60 C
Operating Humidity 10-90% non-condensing
Storage Temperature -20-80 C
Storage Humidity 10-90% non-condensing
