HD632-H81 Industrial ATX Motherboard

HD632-H81 Industrial Motherboard

The HD632-H81 industrial motherboard is a long-life ATX motherboard with 5 PCI slots, 1 PCIe x16 slot and 1 PCIe x4 slot.  This motherboard is based on the Haswell architecture, accepting Generation 4 LGA 1150 Intel processors and utilizing the well-established Intel H81 Express chipset.

On-Board VGA, DVI-D, 4x SATA, Dual GbE LANs, 10x COM

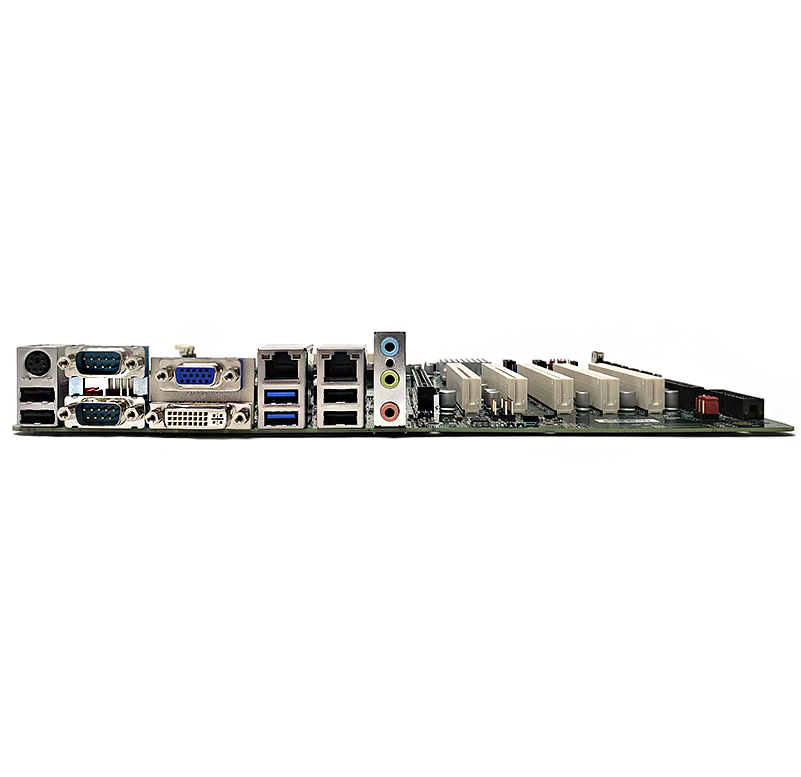

The HD632-H81 industrial motherboard has multiple on-board features commonly sought after on an industrial board.  VGA and DVI-D to take advantage of Intel HD graphics, HD audio, and dual gigabit LANs are all incorporated right on the rear panel.

  • Supports Generation 4 Core i3, i5 & i7 Processors
  • Intel H81 Chipset
  • 2 x DDR3 1600 MHz Memory Sockets up to 16 GB RAM
  • Dual Video, VGA AND DVI-D ports
  • 4 SATA Ports (2 x SATA 3, 2 x SATA 2)
  • On-board RAID 0, 1, 5, 10
  • Dual Gigibit LANs
  • 2 x USB 3.0 (rear), 7 x USB 2.0 (4 rear, 3 via headers)
  • 1 x PCIe x16, 1 x PCIe x4, and 5 x PCI slots
  • 10 x COM Ports (9 x RS-232, 1 x RS232/422/485), 1 x LPT, PS/2

Features

DESCARGAR FICHA
CPU Socket Type LGA 1150
Chipset Intel H81
Channel Supported Dual Channel
CPU Type Core i7 / i5 / i3 / Pentium / Celeron
Number of Memory Slots 2x240pin
Memory Standard 1600 / 1333 DDR3 (non-ECC)
Maximum Memory Supported 16GB
PCIe 3.0 x16 1
PCIe 2.0 x4 1
PCI 5
SATA 3.0 2
SATA 2.0 2
SATA RAID 0 / 1 / 5 / 10
Graphic Controller Intel HD Graphics
VGA 1
DVI-I 1
Audio Controller Realtek ALC886 HD Audio Codec
Ethernet Controller 2x Intel I210 GbE LAN
PS/2 1x Keyboard/Mouse
USB 3.0 2x rear
USB 2.0 4x rear, 2x internal
Serial 10x COM (COM1-2 rear, COM3-10 internal)
Serial Types COM1-2 (RS-232 0V/5V/12V), COM3 (RS-232/422/485 0V/5V/12V), COM4-10 (RS-232 0V/5V/12V)
Parallel 1 (pin header)
Watchdog Timer 255-level
Super I/O Controller Nuvoton NCT6106D
GPIO 8-bits (4x GPI, 4x GPO)
Power Supply ATX 24-pin, 12V 8-pin
Operating Temperature 0-60 C
Operating Humidity 10-90% non-condensing
Storage Temperature -20-85 C
Storage Humidity 10-90% non-condensing
Regulatory Compliance FCC, CE, RoHS, KC
